Ultra Power 12S Battery Charger

Will charge both Li-Po cells (with balance cables) or Li-Ion Cells

Can charge up to two boars at once

Charges 6S & 12S Battery Packs

Charge Current 6Amps – 12Amps

Comes with options for Euro, UK & US Plug

Not Supplied with Balance Extension Cables or XT90 Connectors

£250.00 +VAT

Description

Description:

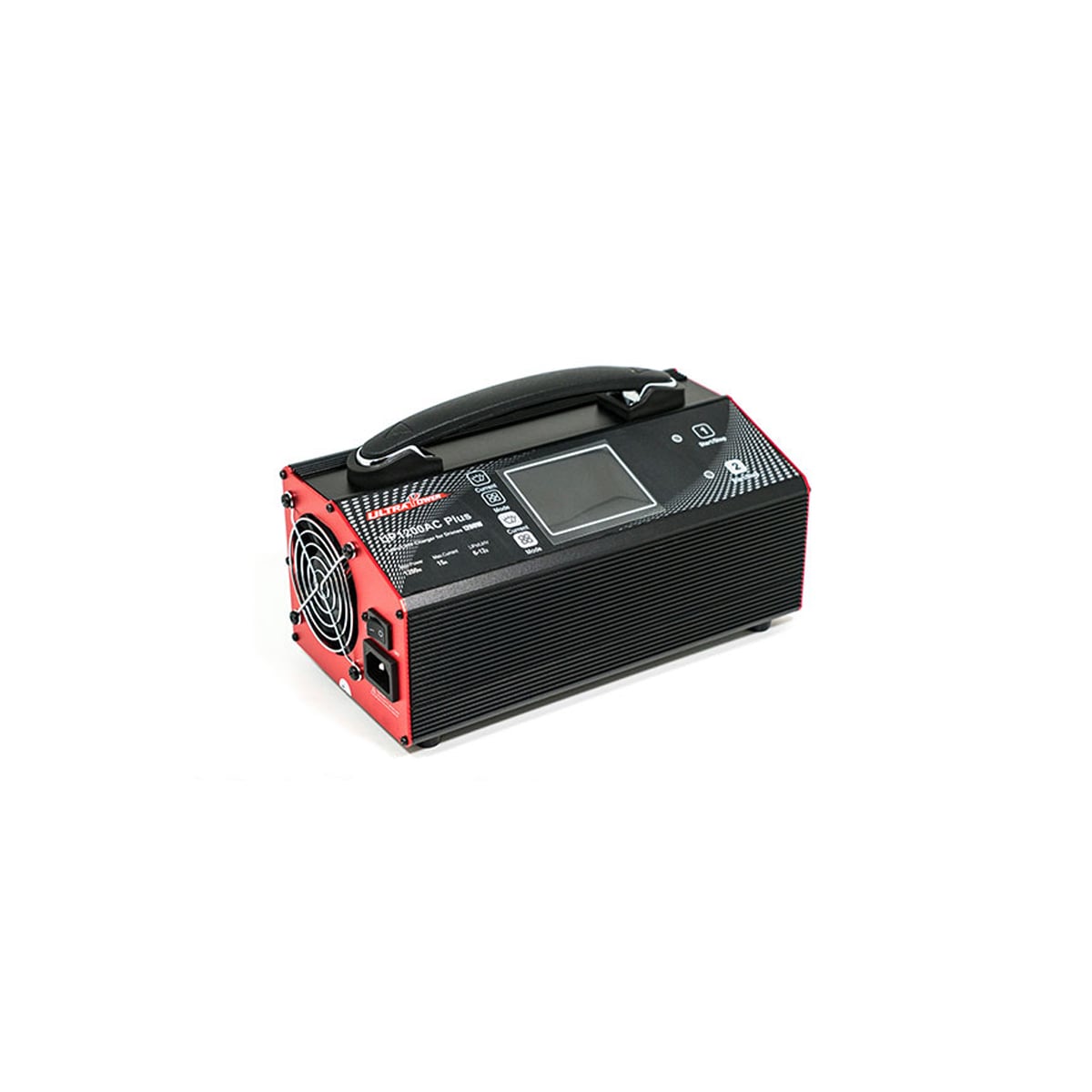

Ultra Power UP1200AC PLUS 2X600W 15A 6-12S Battery Balance Charger

UP1200AC PLUS is specifically designed for Twin channels LiPo/LiHV charger
It can charge 2pcs of 6-12S LiPo/LiHV battery packs simultaneously, with “one-button charge” function.
Easy to use. Plus has over-voltage, over-current, reverse polarity, and over-temperature protection to ensure maximum safety.

Features:

1. Support charging 2 pcs of 6-12S LiPo/LiHV batteries
2. Charging current is adjustable: 2A/5A/8A/10A/15A
3. Two working modes: Balance charge mode, Storage mode
4. Memorizing last charging current
5. Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature protection


Specifications:

Input voltage: AC 110V or 220V
Charge power: 1200W (2x600W)
Charge current range: 2A/5A/8A/10A/15A
Battery type: LiPo/LiHV
Battery cell count: 6-12S
Working mode: Storage mode/Charge mode
Balance current: 1.5A/cell
Net Weight: 3.1KG
Dimensions:268x140x127 mm

Additional Information

Weight 4200 g

Reviews

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

VESC Electronic Speed controller with cables

The VESC Electronic Speed Controller.

Globally renowned high quality motor controller

You will likely have come across VESC™ by now, it is very special in the field of Electronic Speed Controllers so we are very proud that our boards all come as standard with a VESC™ and VESC™ BMS.

VESC6 Mk6 HP – Quite simply a higher powered version of the VESC6 Mk6, with the same trusted reliability and ease of control. Why High Power? Because the mosfets in the HP allow more amps to run through.

VESC6 Mk6 – An incredibly reliable and high performing compact speed controller, used by over 2000 companies in many other applications across the world

VESC 6/75 – If you are using a 16s Battery Pack to power your mountainboard this controller will automatically be selected to handle the higher voltage.

Which Battery Pack?

We make battery packs for both Li-Po & Li-Ion cells.  The (S) stands for Series - adding cells in series increases voltage, The (P) stands for Parallel - adding cells in parallel increases capacity.
A higher voltage will take you faster and higher capacity will take you further. See the table below for further comparison:.

Battery Power

Battery PackCellsCapacityVoltage at peak
12S Li-Po12S 1P20Ah50.4V
16S Li-Po16S 1P20Ah67.2V
12S 21700 Li-Ion12S 7PMolicell P42A – 29.4Ah
Samsung 40T- 28Ah		Molicell P42A – 50.4V
Samsung 40T – 50.4V

Battery BMS, Enclosure & Charger

Battery PackBMSEnclosureChargerBattery (+charger)
12S Li-PoIn chargerClassic or MassiveUltramat 18
UltraPower
£840 +VAT
16S Li-PoVESC BMS16S Massive16S 8A Li-ion £675 +VAT
12S 21700 Li-IonVESC BMSMassive or Double Massive12S 6A Li-ion
12S 12A Li-ion		£574 + VAT
£609 +VAT

Li-Po: These cells are more expensive, however you may consider them worth it because they have less components and therefore provide easy plug and play capability as well as making it possible to do a quick battery swap. Li-Po cells also have a higher discharge performance than the Li-ion packs.

Li-ion:  Individual cells means that you have a serviceable battery pack, swapping out only the individual cells should they be damaged. These cell packs require some electrical knowledge.

We suggest that if you have limited electrical knowledge that you choose Li-Po batteries for their ease.
