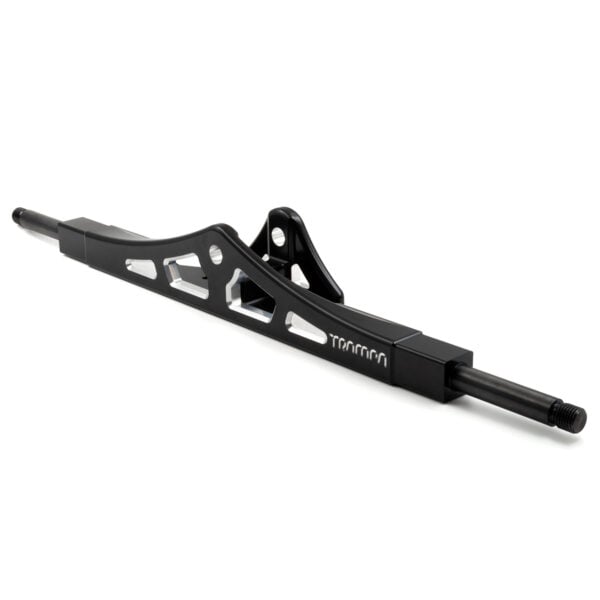

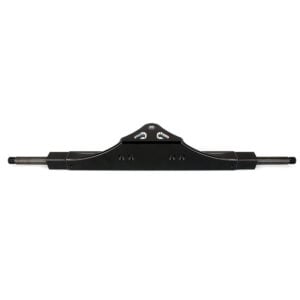

Electric Mountainboard Hanger for front and rear spring trucks.
Made from heat treated aluminium it gives secure attachment for the motor mount.
The E-MTB Savage has weight saving holes and upgraded heat treated CRMO steel axles making it the best hanger there is in the Trampa range. It is a whopping 30% lighter than the E-MTB Infinity hanger whilst maintaining the same strength and durability.
It also benefits from two possible spring positions depending on whether you prefer tighter or looser steering.
£125.00 +VAT
In stock

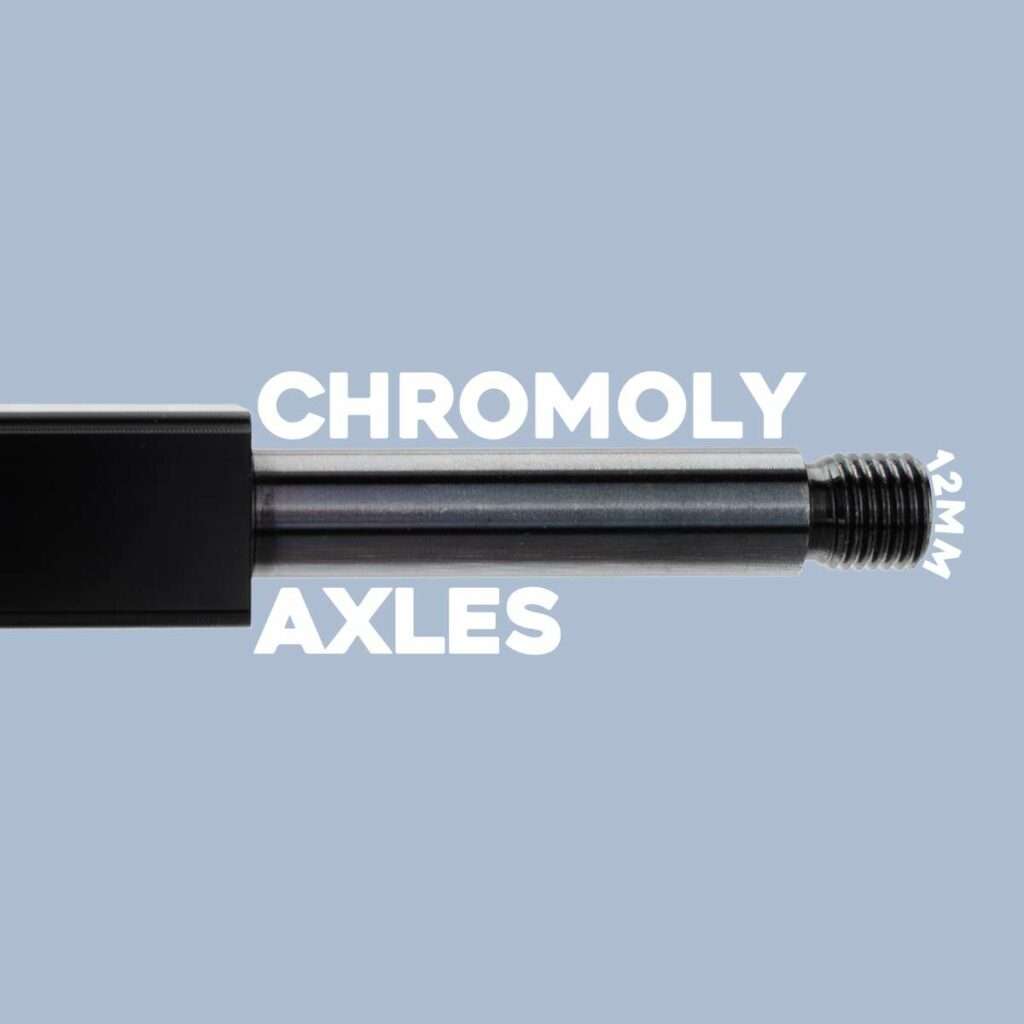

With 12mm Chromoly Steel Axles this hanger is designed specifically for the most bruising rides. Chromoly Steel has excellent corrosion resistance properties and an exceptional strength to weight ratio.

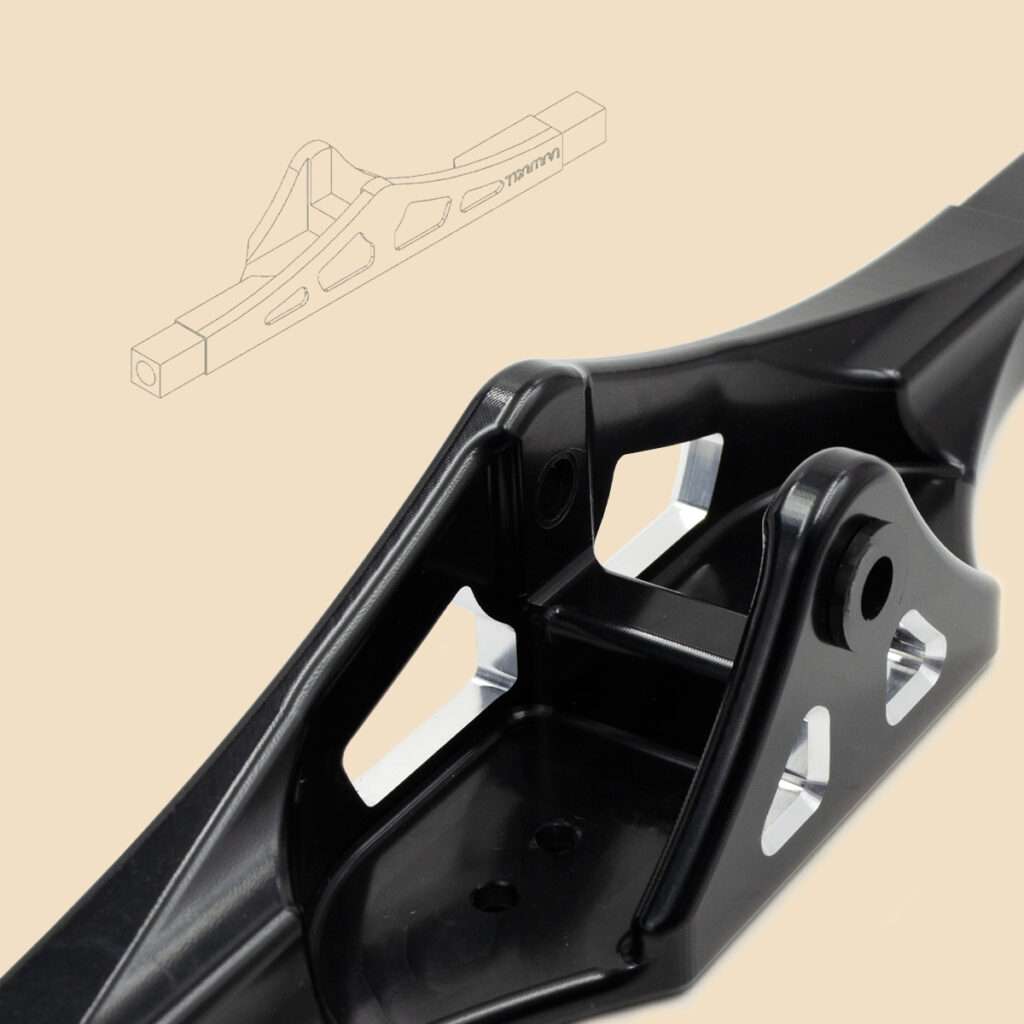

As well as having thickened uprights, the centre of the hanger is strengthened by a ‘Support Bar’ to prevent the sides from pulling in. If that wasn’t enough strength: the truck is CNC Milled from a solid block of Aluminium!
Designed for those insisting on fitting only the very best there is, Trampa’s new savage hanger is one solid piece of CNC
The Savage Hanger a slightly wider but considerably beefed-up / cross version of the original Infinity / Vertigo / Ultimate Spring Truck hangers which already has so much reputation to boast about!
Re-enforced around the kingpin & factory installed with solid 12mm CR-MO steel axles, the Savage hanger measures 16.5″ wide, which is half inch wider than the originals.
The Savage Hanger will fit with all of Trampa’s Spring truck baseplate & all Spring Truck Motor Mounts.
| Weight | 614 g |
|---|---|
| Dimensions | 470 × 150 × 140 mm |
Only logged in customers who have purchased this product may leave a review.
Globally renowned high quality motor controller
You will likely have come across VESC™ by now, it is very special in the field of Electronic Speed Controllers so we are very proud that our boards all come as standard with a VESC™ and VESC™ BMS.
VESC6 Mk6 HP – Quite simply a higher powered version of the VESC6 Mk6, with the same trusted reliability and ease of control. Why High Power? Because the mosfets in the HP allow more amps to run through.
VESC6 Mk6 – An incredibly reliable and high performing compact speed controller, used by over 2000 companies in many other applications across the world
VESC 6/75 – If you are using a 16s Battery Pack to power your mountainboard this controller will automatically be selected to handle the higher voltage.
We make battery packs for both Li-Po & Li-Ion cells.
The (S) stands for Series - adding cells in series increases voltage, The (P) stands for Parallel - adding cells in parallel increases capacity.
A higher voltage will take you faster and higher capacity will take you further. See the table below for further comparison:.
Battery Power
Battery Pack Cells Capacity Voltage at peak
12S Li-Po 12S 1P 20Ah 50.4V
16S Li-Po 16S 1P 20Ah 67.2V
12S 21700 Li-Ion 12S 7P Molicell P42A – 29.4Ah
Samsung 40T- 28AhMolicell P42A – 50.4V
Samsung 40T – 50.4V
Battery BMS, Enclosure & Charger
Battery Pack BMS Enclosure Charger Battery (+charger)
12S Li-Po In charger Classic or Massive Ultramat 18
UltraPower
£840 +VAT
16S Li-Po VESC BMS 16S Massive 16S 8A Li-ion £675 +VAT
12S 21700 Li-Ion VESC BMS Massive or Double Massive 12S 6A Li-ion
12S 12A Li-ion£574 + VAT
£609 +VAT
Li-Po: These cells are more expensive, however you may consider them worth it because they have less components and therefore provide easy plug and play capability as well as making it possible to do a quick battery swap. Li-Po cells also have a higher discharge performance than the Li-ion packs.
Li-ion: Individual cells means that you have a serviceable battery pack, swapping out only the individual cells should they be damaged. These cell packs require some electrical knowledge.
We suggest that if you have limited electrical knowledge that you choose Li-Po batteries for their ease.
