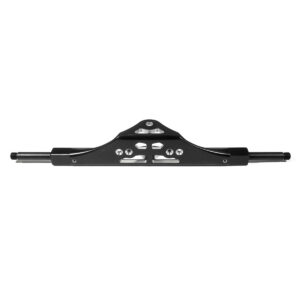

Electric Mountainboard Hanger for front and rear spring trucks.
The EMTB Vertigo has an amazing strength to weight ratio, lighter than the E-MTB Infinity but heavier than the E-MTB Ultimate.
The hanger body is CNC squared to provide secure attachment for the motor mount.
Dual spring positions for whether you prefer tighter or looser steering.
£75.00 +VAT
In stock
This Electric Mountainboard Hanger is 16 inches wide in total with 12mm hollow steel axles – it connects with all spring truck baseplates and mountainboard motor mounts.
The Trampa E-MTB Vertigo hanger was designed with motor mounting in mind. Using a precise CNC milling machine, we’ve squared off the edges of the hanger, meaning Trampa Motor Mounts slide directly and snugly onto the hanger. This ensures the maximum amount of support for the motor mounts, leaving no room for the motors to wobble when riding.
Trampa’s E-MTB Vertigo Hangers are a slimmed down, lightweight version of the original solid style Infinity Hanger To supply the maximum strength at all times all of our hanger bodies are produced from premium forged aluminium produced as one solid piece. The precision CNC milling machine is applied to the infinity hanger & accurately cuts out the bulk of the material without stripping any of its critical strength, resulting in the Vertigo hanger being almost as strong as the Infinity but nearly 20% lighter in weight.
The Vertigo Hanger is fitted with 12mm hollow steel axles. The hollow axles are heat treated – making them substantially stronger & resistant to impacts. Hollow Axles are nearly half the weight of Solid Axles!
A CNC milling machine guarantees precision work – ensuring the Kingpin holes are accurately placed. This results in the best performance for the rider, as well as making the truck easy to assemble & service.
In order to gain the “Two Tone Pimp Finish” the Vertigo Hanger is anodised gloss black for metal protection & colour coordinated good looks, before the CNC work is carried out.
The E-MTB Vertigo Hanger measures 16 inches in total width. When the wheels are fitted to the Hanger, the wheels have a centre wheel width of 14 Inches apart.
| Weight | 454 g |
|---|---|
| Dimensions | 470 × 150 × 140 mm |
| HS Code | 8714913029 |
| origin_country | Taiwan, Provenience of China |
Only logged in customers who have purchased this product may leave a review.
Globally renowned high quality motor controller
You will likely have come across VESC™ by now, it is very special in the field of Electronic Speed Controllers so we are very proud that our boards all come as standard with a VESC™ and VESC™ BMS.
VESC6 Mk6 HP – Quite simply a higher powered version of the VESC6 Mk6, with the same trusted reliability and ease of control. Why High Power? Because the mosfets in the HP allow more amps to run through.
VESC6 Mk6 – An incredibly reliable and high performing compact speed controller, used by over 2000 companies in many other applications across the world
VESC 6/75 – If you are using a 16s Battery Pack to power your mountainboard this controller will automatically be selected to handle the higher voltage.
We make battery packs for both Li-Po & Li-Ion cells.
The (S) stands for Series - adding cells in series increases voltage, The (P) stands for Parallel - adding cells in parallel increases capacity.
A higher voltage will take you faster and higher capacity will take you further. See the table below for further comparison:.
Battery Power
Battery Pack Cells Capacity Voltage at peak
12S Li-Po 12S 1P 20Ah 50.4V
16S Li-Po 16S 1P 20Ah 67.2V
12S 21700 Li-Ion 12S 7P Molicell P42A – 29.4Ah
Samsung 40T- 28AhMolicell P42A – 50.4V
Samsung 40T – 50.4V
Battery BMS, Enclosure & Charger
Battery Pack BMS Enclosure Charger Battery (+charger)
12S Li-Po In charger Classic or Massive Ultramat 18
UltraPower
£840 +VAT
16S Li-Po VESC BMS 16S Massive 16S 8A Li-ion £675 +VAT
12S 21700 Li-Ion VESC BMS Massive or Double Massive 12S 6A Li-ion
12S 12A Li-ion£574 + VAT
£609 +VAT
Li-Po: These cells are more expensive, however you may consider them worth it because they have less components and therefore provide easy plug and play capability as well as making it possible to do a quick battery swap. Li-Po cells also have a higher discharge performance than the Li-ion packs.
Li-ion: Individual cells means that you have a serviceable battery pack, swapping out only the individual cells should they be damaged. These cell packs require some electrical knowledge.
We suggest that if you have limited electrical knowledge that you choose Li-Po batteries for their ease.
