Electric Motors

Description

Trampa Electric Motors

Trampa’s purpose-built brushless electric motors are designed for electric mountainboards and high-voltage applications, including VESC 6 HP controllers. Built with durable components and high-temperature materials, they deliver efficient performance and reliable power for electric board setups.

Features:

• Purpose-built brushless motors designed for high-voltage VESC systems

• Three heavy-duty gold-plated bullet connectors for power

• Two-wire temperature sensor cable, with connections designed to plug into the VESC

• Woven nylon cables for added connector protection and insulation

• Ultra-high-temperature copper windings and high-temperature neodymium magnets

• Extended, heat-treated 8mm steel axle shaft

• Four high-precision Japanese bearings to support motor balance

• Designed to achieve 90% efficiency, measured at 12S, compared with the stated industry standard of 75–77% for similar DC motors

• Compatible with Trampa Full Cage and Half Cage Motor Protection systems when paired with the Motor Filter Kit

• Designed to accommodate a metal mesh particle filter to help prevent dust and larger particles from entering the motor

Available Motors:

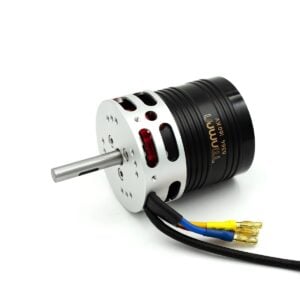

• 6364 160Kv Electric Motor

• 6376 160Kv Electric Motor

• 6376 185Kv Electric Motor

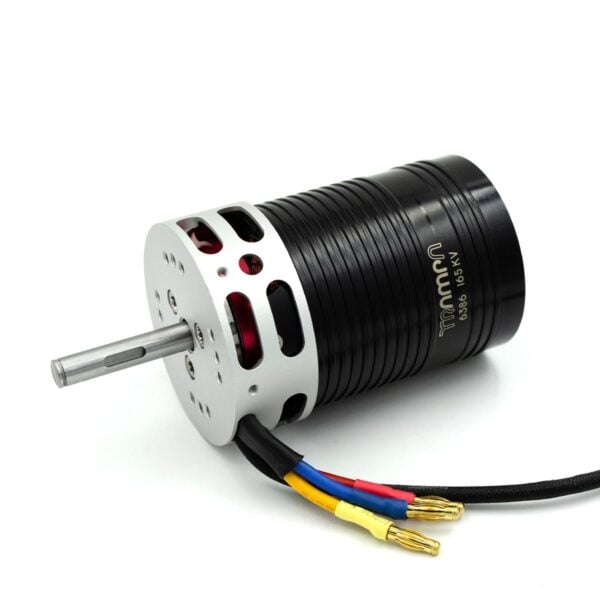

• 6386 165Kv Electric Motor
