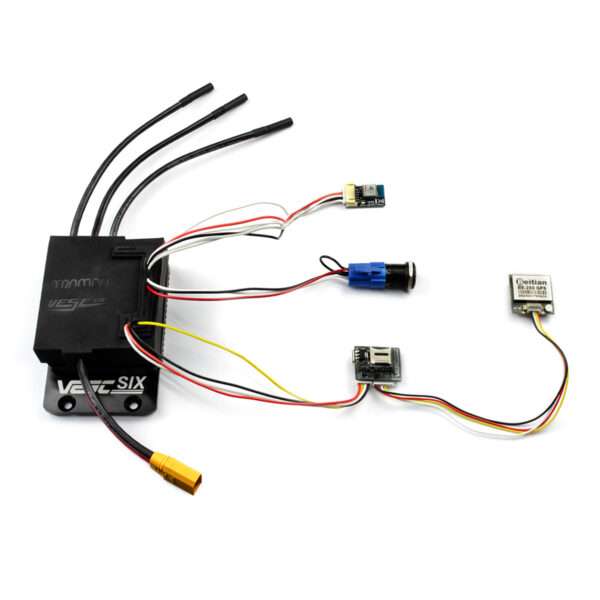

Complete VESC Accessory Kit – With all available accessories for a complete VESC 6 Set-up
Fits all VESC 6:
VESC 6 MK6
VESC 6 HP
VESC 6/75

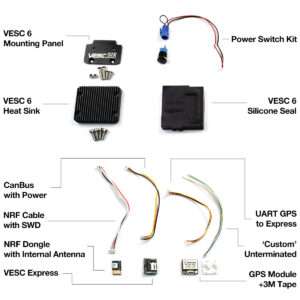

Kit Contains:
1x VESC EXPRESS
1x GPS Module for VESC EXPRESS BE-280
1x UART GPS to VESC EXPRESS Silicon Cable Black/Yellow/White/Red – 200mm
1x CANBUS with POWER Cable EXPRESS Black/Yellow/White/Red – 200mm
1x ALUMINIUM Heat Sink mounting Plate for Single VESC 6 – CUSTOM
2x M5 x 16 Countersunk TORX Bolt
2x M5 x 30 Countersunk TORX Bolt
2x M5 Nut – Marine Grade Stainless steel Nylock Nut
1x VESC 6+ External Splash proof Silicone Seal for CNC Heat sink Box
1x TRAMPA Switch with 5V LED QUALA-T logo & 16mm Stainless Steel Fixing Nut
1x Power Switch Cable Harness 16mm
1x VESC 6 HEAT SINK – 5mm Cooling fins
4x M5 x 16 Socket Capped TORX Bolt
1x VESC Connect NRF Wireless Dongle – INTERNAL Antenna
1x MKIII NRF Dongle Extender cable 200mm
| origin_country | United Kingdom |
|---|---|
| HS Code | 8537109159 |
Only logged in customers who have purchased this product may leave a review.
Globally renowned high quality motor controller
You will likely have come across VESC™ by now, it is very special in the field of Electronic Speed Controllers so we are very proud that our boards all come as standard with a VESC™ and VESC™ BMS.
VESC6 Mk6 HP – Quite simply a higher powered version of the VESC6 Mk6, with the same trusted reliability and ease of control. Why High Power? Because the mosfets in the HP allow more amps to run through.
VESC6 Mk6 – An incredibly reliable and high performing compact speed controller, used by over 2000 companies in many other applications across the world
VESC 6/75 – If you are using a 16s Battery Pack to power your mountainboard this controller will automatically be selected to handle the higher voltage.
We make battery packs for both Li-Po & Li-Ion cells.
The (S) stands for Series - adding cells in series increases voltage, The (P) stands for Parallel - adding cells in parallel increases capacity.
A higher voltage will take you faster and higher capacity will take you further. See the table below for further comparison:.
Battery Power
Battery Pack Cells Capacity Voltage at peak
12S Li-Po 12S 1P 20Ah 50.4V
16S Li-Po 16S 1P 20Ah 67.2V
12S 21700 Li-Ion 12S 7P Molicell P42A – 29.4Ah
Samsung 40T- 28AhMolicell P42A – 50.4V
Samsung 40T – 50.4V
Battery BMS, Enclosure & Charger
Battery Pack BMS Enclosure Charger Battery (+charger)
12S Li-Po In charger Classic or Massive Ultramat 18
UltraPower
£840 +VAT
16S Li-Po VESC BMS 16S Massive 16S 8A Li-ion £675 +VAT
12S 21700 Li-Ion VESC BMS Massive or Double Massive 12S 6A Li-ion
12S 12A Li-ion£574 + VAT
£609 +VAT
Li-Po: These cells are more expensive, however you may consider them worth it because they have less components and therefore provide easy plug and play capability as well as making it possible to do a quick battery swap. Li-Po cells also have a higher discharge performance than the Li-ion packs.
Li-ion: Individual cells means that you have a serviceable battery pack, swapping out only the individual cells should they be damaged. These cell packs require some electrical knowledge.
We suggest that if you have limited electrical knowledge that you choose Li-Po batteries for their ease.
