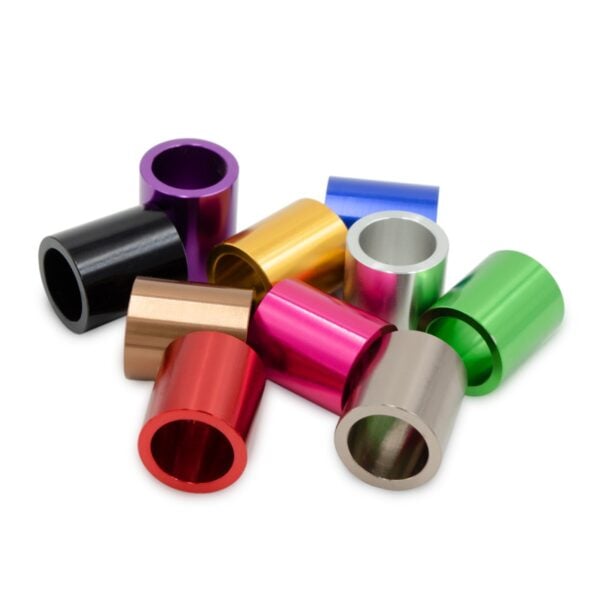

10 wheel support spacers in different colours
9.525X18MM-WHEEL-SUPPORT-SPACER
Screenshot 2024-05-31 at 14.25.45
10 wheel support spacers in different colours
9.525X18MM-WHEEL-SUPPORT-SPACER
Screenshot 2024-05-31 at 14.25.45

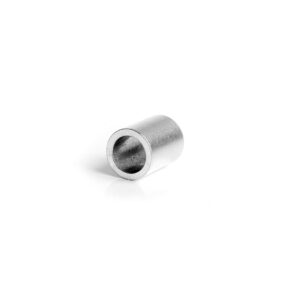

Wheel Support Spacer

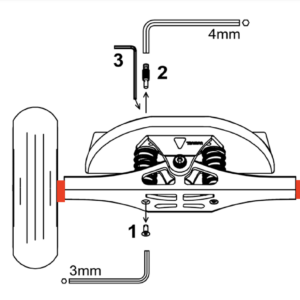

This spacer sits between the truck and the wheels. It is used to perfectly position Trampa wheels on to the truck.

The size of the spacer will depend on the type of truck and the type of wheel you are fitting it to. See Description tab for further size information.

Wheel Support Spacers are included with all relevant* Truck purchases. *not all truck/wheel combinations require spacers.

CNC’d from heat treated aluminium and then bead polished to give the metal extra surface protection and shiny appearance.



£1.00 +VAT
Clear

Description

Wheel Support Spacer

The Wheel Support Spacer connects the wheels to the hanger on mountainboards and skate trucks. Available in different lengths for specific axle sizes, hubs and truck configurations, these spacers help you choose the correct fit for your setup.

Axle Size: 9.525mm

  • 6mm: For offset Megastar 8-inch hubs and offset Megastar 9-inch hubs only.

  • 18.2mm: Standard mountainboard wheel support spacer. Connects the wheels to the hanger. Used on the front trucks of electric boards and on both front and rear trucks of non-electric boards.

  • 44mm: Specifically designed for skate trucks, connecting the wheels to the hanger at both the front and rear.

Axle Size: 12mm

  • 18.2mm: Standard mountainboard wheel support spacer. Connects the wheels to the hanger. Used on the front trucks of electric boards and on both front and rear trucks of non-electric boards. Available in the 10-colour Trampa range.

  • 22mm: For use with Primo hubs only.

Key Features:

  • Purpose: Connects wheels to the hanger

  • Axle compatibility: 9.525mm or 12mm, depending on the selected spacer

  • Available lengths: 6mm, 18.2mm, 22mm and 44mm, depending on axle size and application

  • Compatibility: Selected mountainboard wheels, Megastar hubs, Primo hubs and skate trucks

Important: Check your axle size, hub type and truck configuration before selecting a spacer.

Additional Information

Weight 5 g
Dimensions 1.82 × 1.6 × 1.6 cm
HS Code

7616100099
origin_country

China

Reviews

VESC Electronic Speed controller with cables

The VESC Electronic Speed Controller.

Globally renowned high quality motor controller

You will likely have come across VESC™ by now, it is very special in the field of Electronic Speed Controllers so we are very proud that our boards all come as standard with a VESC™ and VESC™ BMS.

VESC6 Mk6 HP – Quite simply a higher powered version of the VESC6 Mk6, with the same trusted reliability and ease of control. Why High Power? Because the mosfets in the HP allow more amps to run through.

VESC6 Mk6 – An incredibly reliable and high performing compact speed controller, used by over 2000 companies in many other applications across the world

VESC 6/75 – If you are using a 16s Battery Pack to power your mountainboard this controller will automatically be selected to handle the higher voltage.

Which Battery Pack?

We make battery packs for both Li-Po & Li-Ion cells.  The (S) stands for Series - adding cells in series increases voltage, The (P) stands for Parallel - adding cells in parallel increases capacity.
A higher voltage will take you faster and higher capacity will take you further. See the table below for further comparison:.

Battery Power

Battery PackCellsCapacityVoltage at peak
12S Li-Po12S 1P20Ah50.4V
16S Li-Po16S 1P20Ah67.2V
12S 21700 Li-Ion12S 7PMolicell P42A – 29.4Ah
Samsung 40T- 28Ah		Molicell P42A – 50.4V
Samsung 40T – 50.4V

Battery BMS, Enclosure & Charger

Battery PackBMSEnclosureChargerBattery (+charger)
12S Li-PoIn chargerClassic or MassiveUltramat 18
UltraPower
£840 +VAT
16S Li-PoVESC BMS16S Massive16S 8A Li-ion £675 +VAT
12S 21700 Li-IonVESC BMSMassive or Double Massive12S 6A Li-ion
12S 12A Li-ion		£574 + VAT
£609 +VAT

Li-Po: These cells are more expensive, however you may consider them worth it because they have less components and therefore provide easy plug and play capability as well as making it possible to do a quick battery swap. Li-Po cells also have a higher discharge performance than the Li-ion packs.

Li-ion:  Individual cells means that you have a serviceable battery pack, swapping out only the individual cells should they be damaged. These cell packs require some electrical knowledge.

We suggest that if you have limited electrical knowledge that you choose Li-Po batteries for their ease.
