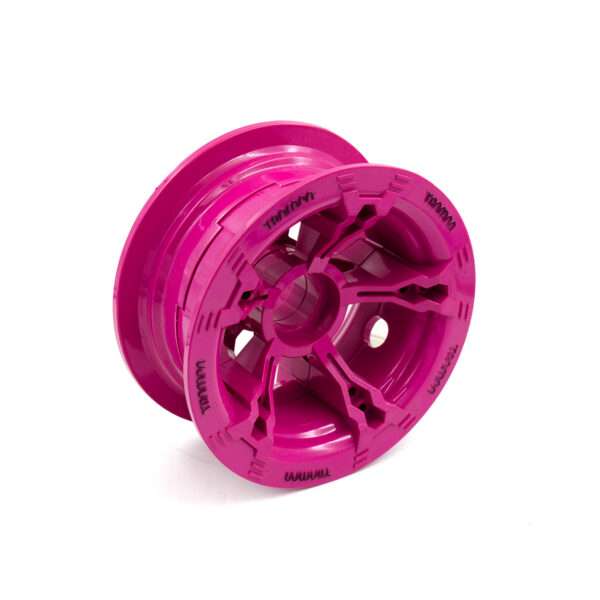

Our most versatile hub, fitting all tyres from 6.5 Urban Treads to 10″ Tractor Tyres, these hubs can do it all!
An assembled Phatlad Hub houses a Spoke Support Spacer between the two Phatlad Rims, which are then held together by 5x M4 Bolts & Nuts.
A Deep Dish Off-Set light weight composite Hub that fits tyres from 6.5-10″
A 2 piece plastic injection moulded design using DuPont materials giving optimum strength to weight ratio
The Deep Dish design widens a tyres profile and increases the boards wheel base improving both grip and stability
The Off-Set design widens the wheel-base for greater stability
Dual Bolt Holes allow for a tyre change without pulley removal.
The deep dish bearing position give clearance for larger tyres
Includes Phatlads Bolt Kit to connect the 2 hub parts together
Versatile and Lightweight Hub for Wheels
| HUBS | Hub Diametre & Material | Fits Tyre Size | Fits Spokes | ||
|---|---|---|---|---|---|
| Hypa | 3.75" Du-Pont Plastic Injection Moulded | 5" Gummies, 6.5", 7" & 8" | - | ||
| Superstar | 3.75" Du-Pont Plastic Injection Moulded | 5" Gummies, 6.5", 7" & 8" | Superstar Spokes | ||
| Phatlad | 3.75" Du-Pont Plastic Injection Moulded | 6.5", 7", 8", 9" & 10" | - | ||
| Centre Set Megastar 8 | 3.75" T2 Aluminium | 5" Gummies, 6.5", 7" & 8" | Superstar & Skinny BB Spokes | ||
| Off Set Megastar 8 | 3.75" T2 Aluminium | 5" Gummies, 6.5", 7" & 8" | Superstar & Skinny BB Spokes | ||
| Deep Dish Megastar 8 | 3.75" T2 Aluminium | 5" Gummies, 6.5", 7" & 8" | Superstar & Skinny BB Spokes | ||
| Off Set Megastar 9 | 3.75" T2 Aluminium | 8", 9" & 10" | Superstar, Skinny BB's & Phat BB Star Spokes | ||
| Deep Dish Megastar 9 | 3.75" T2 Aluminium | 8", 9" & 10" | Superstar & Skinny BB Spokes | ||
| Weight | 226 g |
|---|---|
| HS Code | 3921909000 |
| origin_country | Taiwan, Provenience of China |
Only logged in customers who have purchased this product may leave a review.
Globally renowned high quality motor controller
You will likely have come across VESC™ by now, it is very special in the field of Electronic Speed Controllers so we are very proud that our boards all come as standard with a VESC™ and VESC™ BMS.
VESC6 Mk6 HP – Quite simply a higher powered version of the VESC6 Mk6, with the same trusted reliability and ease of control. Why High Power? Because the mosfets in the HP allow more amps to run through.
VESC6 Mk6 – An incredibly reliable and high performing compact speed controller, used by over 2000 companies in many other applications across the world
VESC 6/75 – If you are using a 16s Battery Pack to power your mountainboard this controller will automatically be selected to handle the higher voltage.
We make battery packs for both Li-Po & Li-Ion cells.
The (S) stands for Series - adding cells in series increases voltage, The (P) stands for Parallel - adding cells in parallel increases capacity.
A higher voltage will take you faster and higher capacity will take you further. See the table below for further comparison:.
Battery Power
Battery Pack Cells Capacity Voltage at peak
12S Li-Po 12S 1P 20Ah 50.4V
16S Li-Po 16S 1P 20Ah 67.2V
12S 21700 Li-Ion 12S 7P Molicell P42A – 29.4Ah
Samsung 40T- 28AhMolicell P42A – 50.4V
Samsung 40T – 50.4V
Battery BMS, Enclosure & Charger
Battery Pack BMS Enclosure Charger Battery (+charger)
12S Li-Po In charger Classic or Massive Ultramat 18
UltraPower
£840 +VAT
16S Li-Po VESC BMS 16S Massive 16S 8A Li-ion £675 +VAT
12S 21700 Li-Ion VESC BMS Massive or Double Massive 12S 6A Li-ion
12S 12A Li-ion£574 + VAT
£609 +VAT
Li-Po: These cells are more expensive, however you may consider them worth it because they have less components and therefore provide easy plug and play capability as well as making it possible to do a quick battery swap. Li-Po cells also have a higher discharge performance than the Li-ion packs.
Li-ion: Individual cells means that you have a serviceable battery pack, swapping out only the individual cells should they be damaged. These cell packs require some electrical knowledge.
We suggest that if you have limited electrical knowledge that you choose Li-Po batteries for their ease.
